UNISORB® Level-Rite Mounts

Unisorb’s new patented Level-Rite mounts have been engineered and tested to accommodate the needs of a broad spectrum of machinery. From small Chip making mills to larger machining centers, Level-Rite Mounts provide machine installation solutions for levelling, aligning and vibration isolation. The all new design provides industry with a higher standard for adjustment range, durability, and function.

Unparalleled Adjustment Range

Level-Rite Mounts provide the greatest adjustment range in the industry. Every model size in the Unisorb Level-Rite Mounts line provides an overall adjustment range of 1-3/8″, nearly triple the industry average. The mounts are available in seven standard models to provide an extensive range of size and configuration.

Machine Walking Prevented

The rectangular shape of the Unisorb Level-Rite Mount provides significantly greater resistance to machine ‘walking’ than circular mounts. The straight leading edge surfaces on rectangular mounts are considerably more stable than circular mounts. This helps eliminate pad roll as well as entrapment of coolants and oils beneath the pad which ultimately contributes to machine walking. The exceptionally high coefficient of friction provided by these elastomeric pads also prevents machine walking.

Unmatched Durability

Built to meet the industry’s toughest demands, the housings of the Unisorb Level-Rite Mounts are made of ductile iron conforming to Foundry Spec. 65-45-12. These mounts have been rigorously tested and are virtually indestructible.

Unequaled Isolation Performance

The isolation pads of all Unisorb’s Level-Rite Mounts are made from proprietary elastomers. The unique internal design eliminates the interdependence between vertical and horizontal stiffness found in other mount designs. This unique design ensures that each mounting point presents consistent vertical and horizontal load deflection characteristics, regardless of adjustment height. Level-Rite Mounts are unmatched in controlling extreme machine induced dynamic loads, thus eliminating excessive machine motion and preventing failures typical of most other general purpose mounts.

Rugged Adjusting Bolt Design

The Level-Rite mount features a high strength, grade 5 hex head adjusting bolt that will withstand punishment which would shear off most other bolts. The finer thread pitch provides greater accuracy in adjustment. Level-Rite mounts feature adjusting bolts with metric threads. Special bolt lengths and configurations are available on request.

Summary of Benefits

Reduction of Shock and Vibration.
Prevention of Machine 'Walking'.
Simplification of machine installation.
Elimination of anchor bolts fast, accurate alignment.
Accommodation of uneven floors.
Increased equipment life.

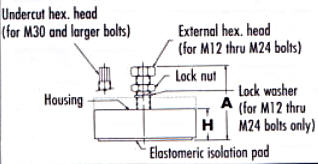

Specification
Model	Max Load (lbs)	A	L	W	H	Standard Bolt Size	Max. Mach. Foot Th.
LR-2500	2500	7.78	5.50	3.50	2.50 / 3.88	M12 x 1.75 x 150	2.27
LR-5000	5000	7.77	7.00	4.50	2.50 / 3.88	M16 x 2 x 150	2.08
LR-7500	7500	7.88	8.00	5.00	2.50 / 3.88	M20 x 1.5 x 150	1.91
LR-12000	12000	9.94	8.00	5.88	2.50 / 3.88	M24 x 2 x 200	3.65
LR-16000	16000	10.32	10.00	7.88	2.50 / 3.88	M24 x 2 x 200	3.40
LR-25000	25000	10.74	12.50	9.00	3.50 / 4.88	M30 x 2 x 200	3.53
LR-35000	35000	11.09	16.00	12.50	4.50 / 5.88	M36 x 2 x 250	4.52

*Dimensions are in inches except as shown.
