Titan Shock Pads

Titan Shock Pads

Impact shock and vibration can do costly damage to machines, mounting devices and floors. Also, noise may reduce efficiency of operating personnel. Titan Shock Pads offer an easy economical way to solve these problems.

Made of a tough textile base laminated with a specially formulated oil resistant neoprene compound, these multiply pads provide protection and vibration isolation needed for machines and equipment, ranging in size from presses to forging hammers. Titan Shock Pads protect the floors and machine mountings against damaging impact shock while absorbing vibration and dampening structure-borne noise.

Type of Applications

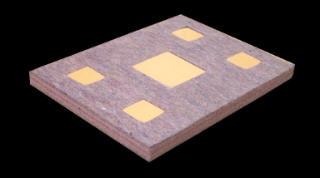

Titan Shock Pads are used in COMBINATION PRESS PADS. The shock pad inserts allow the Combination Press Pad sets to be tuned to the individual requirements of a press.
Typical Deflection
Load in Lbs. Per Sq. In.
14 Ply 15/64″ Thick
21 Ply 11/32″ Thick
31 Ply 1/2″ Thick
39 Ply 5/8″ Thick
48 Ply 3/4″ Thick
64 Ply 1″
Thick
50
.003″
.005″
.006″
.008″
.010″
.012″
100
.005″
.007″
.010″
.013″
.015″
.021″
200
.008″
.012″
.017″
.021″
.025″
.034″
500
.014″
.021″
.031″
.038″
.046″
.061″
1000
.022″
.032″
.047
.058″
.070″
.093″
2000
.033
.048″
.070″
.088″
.105″
.140″
